#include <Arduino.h>
#include <Keyboard.h>  // HID keyboard library for Arduino R4
#include <math.h>

// #define DEBUG  // Uncomment this line to enable debugging

// ----------------- USER CONFIGURATION -----------------
#define SAMPLE_RATE       512          // samples per second
#define BAUD_RATE         115200

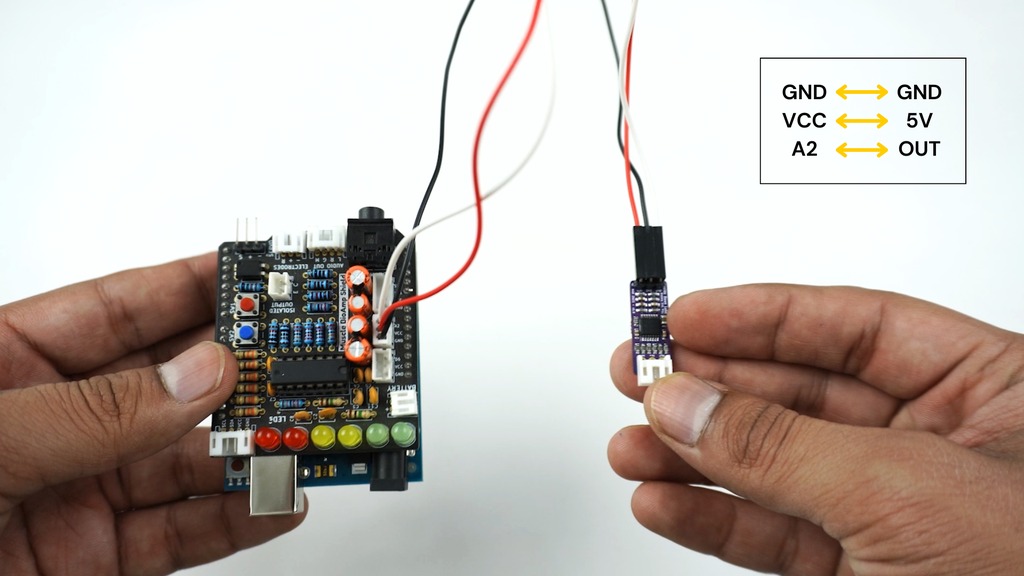

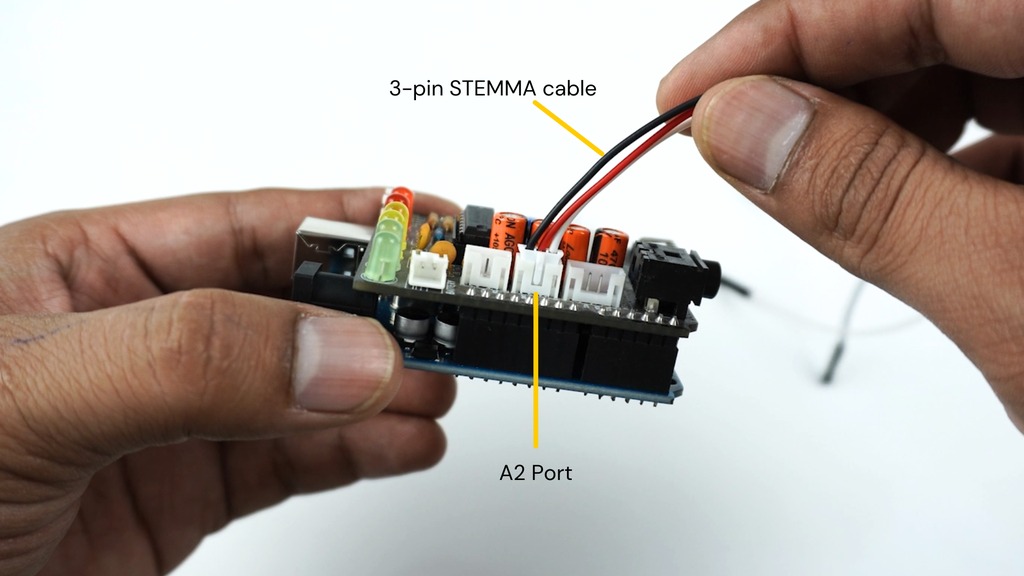

#define INPUT_PIN         A2
#define LED_PIN           LED_BUILTIN

// Envelope Configuration for EOG detection
#define ENVELOPE_WINDOW_MS 100  // Smoothing window in milliseconds
#define ENVELOPE_WINDOW_SIZE ((ENVELOPE_WINDOW_MS * SAMPLE_RATE) / 1000)

// Blink Detection Thresholds - adjust these based on your setup
const int BlinkLowerThreshold = 30;
const int BlinkUpperThreshold = 50;

// Circular buffer for timing-based sampling
#define BUFFER_SIZE 64
float eogCircBuffer[BUFFER_SIZE];
int writeIndex = 0;
int readIndex = 0;
int samplesAvailable = 0;

// Single Blink Detection Configuration
const unsigned long BLINK_DEBOUNCE_MS = 300;   // minimum time between blinks to prevent double-triggering
unsigned long lastBlinkTime = 0;               // time of most recent blink
float currentEOGEnvelope = 0;

// HID Command Cooldown to prevent rapid-fire commands
const unsigned long HID_COOLDOWN_MS = 250;  // 250ms between space commands (allows ~4 jumps per second)
unsigned long lastHIDCommandTime = 0;

// EOG Envelope Processing Variables
float eogEnvelopeBuffer[ENVELOPE_WINDOW_SIZE] = {0};
int eogEnvelopeIndex = 0;
float eogEnvelopeSum = 0;

// Game Statistics
unsigned long totalBlinks = 0;
unsigned long gameStartTime = 0;

// EOG Statistics for debug display
#define SEGMENT_SEC 1
#define SAMPLES_PER_SEGMENT (SAMPLE_RATE * SEGMENT_SEC)
float eogBuffer[SAMPLES_PER_SEGMENT] = {0};
uint16_t segmentIndex = 0;
unsigned long lastSegmentTimeMs = 0;
float eogAvg = 0, eogMin = 0, eogMax = 0;
bool segmentStatsReady = false;

// --- Filter Functions ---

// Band-Stop Butterworth IIR digital filter, generated using filter_gen.py.
// Sampling rate: 512.0 Hz, frequency: [48.0, 52.0] Hz.
// Filter is order 2, implemented as second-order sections (biquads).
// Reference: https://docs.scipy.org/doc/scipy/reference/generated/scipy.signal.butter.html
float Notch(float input)
{
  float output = input;
  {
    static float z1, z2; // filter section state
    float x = output - -1.58696045*z1 - 0.96505858*z2;
    output = 0.96588529*x + -1.57986211*z1 + 0.96588529*z2;
    z2 = z1;
    z1 = x;
  }
  {
    static float z1, z2; // filter section state
    float x = output - -1.62761184*z1 - 0.96671306*z2;
    output = 1.00000000*x + -1.63566226*z1 + 1.00000000*z2;
    z2 = z1;
    z1 = x;
  }
  return output;
}

// High-Pass Butterworth IIR digital filter, generated using filter_gen.py.
// Sampling rate: 512.0 Hz, frequency: 5.0 Hz.
// Filter is order 2, implemented as second-order sections (biquads).
// Reference: https://docs.scipy.org/doc/scipy/reference/generated/scipy.signal.butter.html
float EOGFilter(float input)
{
  float output = input;
  {
    static float z1, z2; // filter section state
    float x = output - -1.91327599*z1 - 0.91688335*z2;
    output = 0.95753983*x + -1.91507967*z1 + 0.95753983*z2;
    z2 = z1;
    z1 = x;
  }
  return output;
}

float updateEOGEnvelope(float sample)
{
  float absSample = fabs(sample);

  // Update circular buffer and running sum
  eogEnvelopeSum -= eogEnvelopeBuffer[eogEnvelopeIndex];
  eogEnvelopeSum += absSample;
  eogEnvelopeBuffer[eogEnvelopeIndex] = absSample;
  eogEnvelopeIndex = (eogEnvelopeIndex + 1) % ENVELOPE_WINDOW_SIZE;

  return eogEnvelopeSum / ENVELOPE_WINDOW_SIZE;  // Return moving average
}

// HID Keyboard Functions
void sendSpaceBar() {
  unsigned long nowMs = millis();
  if ((nowMs - lastHIDCommandTime) >= HID_COOLDOWN_MS) {
    Keyboard.press(' ');  // Press space bar
    delay(30);            // Hold key for 30ms (shorter for gaming responsiveness)
    Keyboard.release(' ');
    lastHIDCommandTime = nowMs;
    totalBlinks++;

    Serial.print("JUMP! Blink #");
    Serial.println(totalBlinks);

    // LED feedback - quick single flash
    digitalWrite(LED_PIN, HIGH);
    delay(50);
    digitalWrite(LED_PIN, LOW);
  }
}

void setup() {
  Serial.begin(BAUD_RATE);
  delay(100);

  pinMode(INPUT_PIN, INPUT);
  pinMode(LED_PIN, OUTPUT);

  // Initialize HID Keyboard
  Keyboard.begin();

  // LED startup sequence - game ready indicator
  for(int i = 0; i < 3; i++) {
    digitalWrite(LED_PIN, HIGH);
    delay(200);
    digitalWrite(LED_PIN, LOW);
    delay(200);
  }

  gameStartTime = millis();
  lastSegmentTimeMs = millis();  // Initialize the segment timer

  Serial.println("=================================");
  Serial.println("Arduino R4 EOG Dino Game Controller");
  Serial.println("=================================");
  Serial.println("Single Blink = Space Bar (Jump)");
  Serial.println("Perfect for Chrome Dino Game!");
  Serial.println("");
  Serial.println("Instructions:");
  Serial.println("1. Open Chrome and go to chrome://dino/");
  Serial.println("2. Or disconnect internet and try to browse");
  Serial.println("3. Press spacebar once to start game");
  Serial.println("4. Then use blinks to jump!");
  Serial.println("");
  Serial.println("Starting EOG monitoring at 512 Hz...");
  Serial.println("Ready to play! 🦕");
}

void loop() {
    static unsigned long lastMicros = 0;
    static long timer = 0;

    digitalWrite(LED_PIN, LOW);  // Default LED state

    // Timing-based sampling for 512 Hz
    unsigned long currentMicros = micros();
    long interval = (long)(currentMicros - lastMicros);
    lastMicros = currentMicros;

    timer -= interval;
    const long period = 1000000L / SAMPLE_RATE;
    while (timer < 0) {
        timer += period;
        int raw = analogRead(INPUT_PIN);
        float filtered = Notch(raw);
        float eog = EOGFilter(filtered);
        eogCircBuffer[writeIndex] = eog;
        writeIndex = (writeIndex + 1) % BUFFER_SIZE;
        if (samplesAvailable < BUFFER_SIZE) {
            samplesAvailable++;
        }
    }

    // Process all available samples from circular buffer
    while (samplesAvailable > 0) {
        float eog = eogCircBuffer[readIndex];
        readIndex = (readIndex + 1) % BUFFER_SIZE;
        samplesAvailable--;

        // Process the sample (envelope calculation)
        currentEOGEnvelope = updateEOGEnvelope(eog);

        // Add to segment buffer for statistics
        if(segmentIndex < SAMPLES_PER_SEGMENT) {
            eogBuffer[segmentIndex] = currentEOGEnvelope;
            segmentIndex++;
        }
    }

    // Get current time for blink detection logic
    unsigned long nowMs = millis();

    // ===== SEGMENT STATISTICS PROCESSING =====
    if ((nowMs - lastSegmentTimeMs) >= (1000UL * SEGMENT_SEC)) {
        if(segmentIndex > 0) {
            // Compute min/max/avg for the completed segment
            eogMin = eogBuffer[0];
            eogMax = eogBuffer[0];
            float eogSum = 0;

            for (uint16_t i = 0; i < segmentIndex; i++) {
                float eogVal = eogBuffer[i];

                // EOG statistics
                if (eogVal < eogMin) eogMin = eogVal;
                if (eogVal > eogMax) eogMax = eogVal;
                eogSum += eogVal;
            }

            eogAvg = eogSum / segmentIndex;
            segmentStatsReady = true;
        }

        lastSegmentTimeMs = nowMs;
        segmentIndex = 0;
    }

    // ===== SINGLE BLINK DETECTION AND SPACE BAR CONTROL =====
    if (currentEOGEnvelope > BlinkLowerThreshold &&
        currentEOGEnvelope < BlinkUpperThreshold &&
        (nowMs - lastBlinkTime) >= BLINK_DEBOUNCE_MS) {

        lastBlinkTime = nowMs;

        #ifdef DEBUG
        Serial.println("Blink detected!");
        #endif

        // Send space bar immediately for single blink
        sendSpaceBar();
    }

    // ===== PERIODIC STATUS UPDATES =====
    static unsigned long lastStatusUpdate = 0;
    if ((nowMs - lastStatusUpdate) >= 30000) {  // Every 30 seconds
        unsigned long gameTimeSeconds = (nowMs - gameStartTime) / 1000;
        float blinksPerMinute = (totalBlinks * 60.0) / (gameTimeSeconds + 1);

        Serial.println("");
        Serial.println("=== Game Stats ===");
        Serial.print("Game Time: ");
        Serial.print(gameTimeSeconds);
        Serial.println(" seconds");
        Serial.print("Total Jumps: ");
        Serial.println(totalBlinks);
        Serial.print("Jump Rate: ");
        Serial.print(blinksPerMinute, 1);
        Serial.println(" per minute");
        Serial.print("Current EOG Level: ");
        Serial.println(currentEOGEnvelope);
        Serial.println("==================");
        Serial.println("");

        lastStatusUpdate = nowMs;
    }

    // ===== REAL-TIME EOG MONITORING (DEBUG) =====
    #ifdef DEBUG
    static unsigned long lastDebugPrint = 0;
    if ((nowMs - lastDebugPrint) >= 1000) {  // Every 1 second
        if (segmentStatsReady) {
            Serial.print("EOG: (Avg: "); Serial.print(eogAvg);
            Serial.print(", Min: "); Serial.print(eogMin);
            Serial.print(", Max: "); Serial.print(eogMax); Serial.println(")");
        } else {
            Serial.println("EOG: "); Serial.print(currentEOGEnvelope);
        }
        lastDebugPrint = nowMs;
    }
    #endif
}
